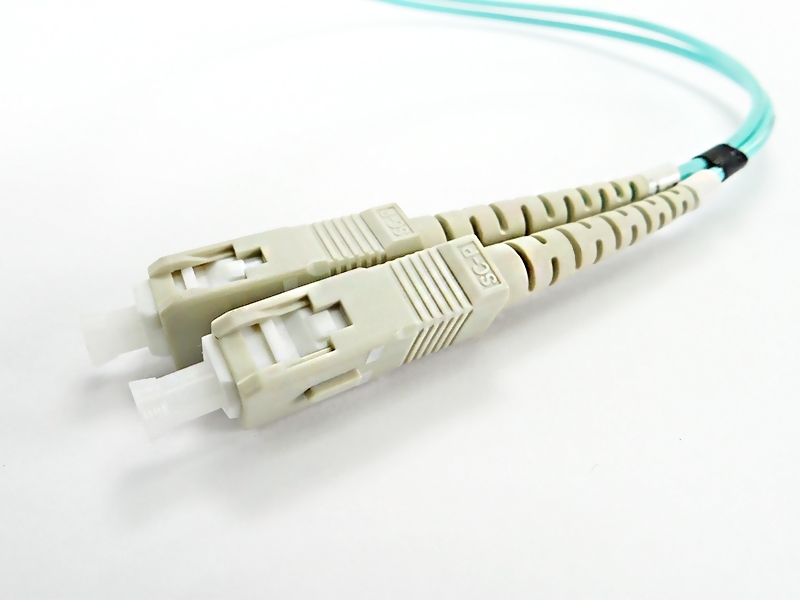

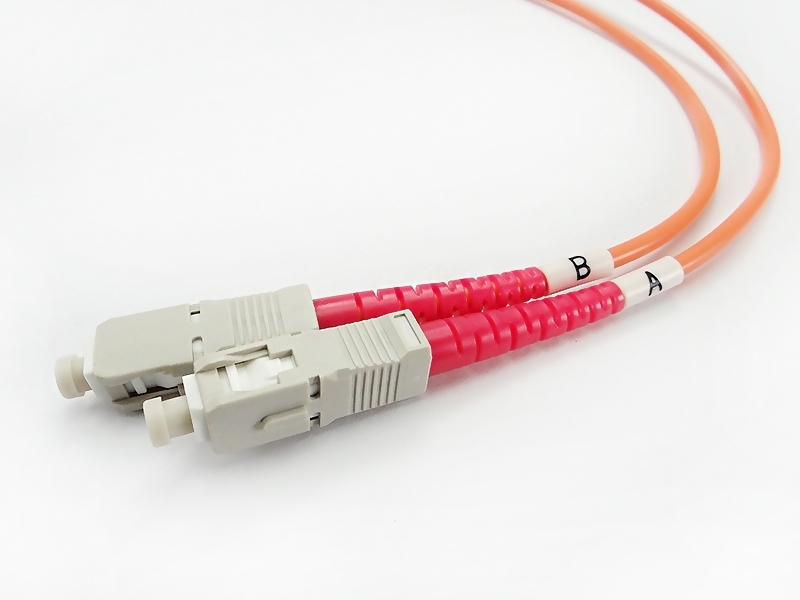

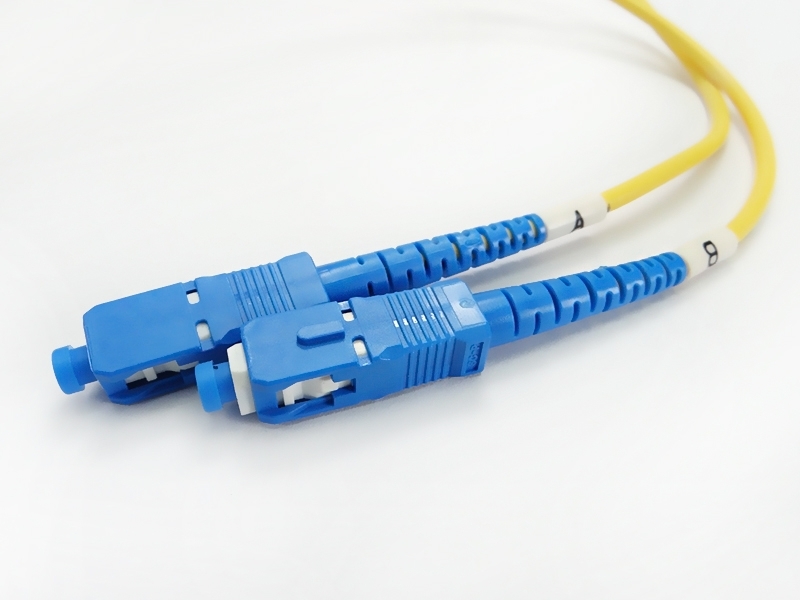

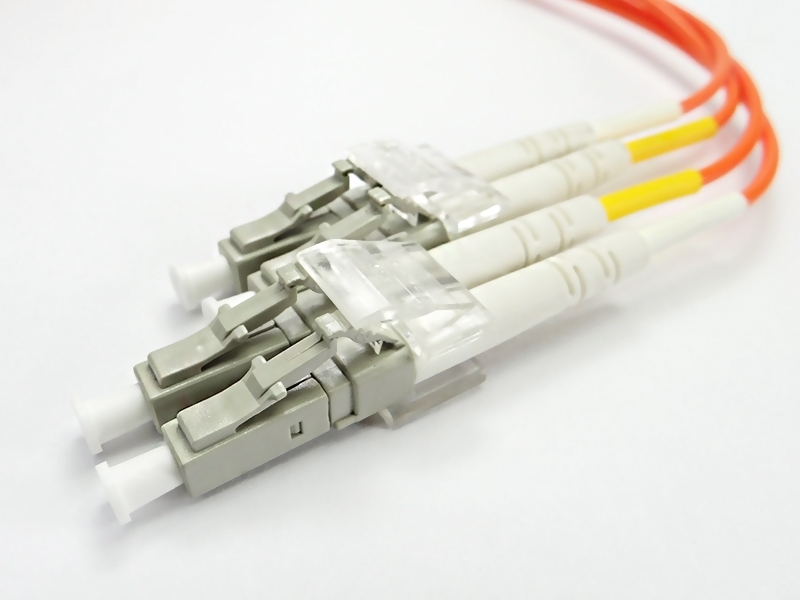

| GOF patch cord
Application
| ◆ Optical test equipment | ||||
| ◆ Interconnection between distribution center optical electronic equipment | ||||
| ◆ Long span optical communication system | ||||
| ◆ Local area network | ||||
| ◆ High speed transmission system | ||||
| ◆ Data，voice and image applications | ||||
Features
| ◆ Provide 9/125 μm，50/125 μm( OM3 / OM4) and 62.5/125 μm all serials of products. | ||||||||
|

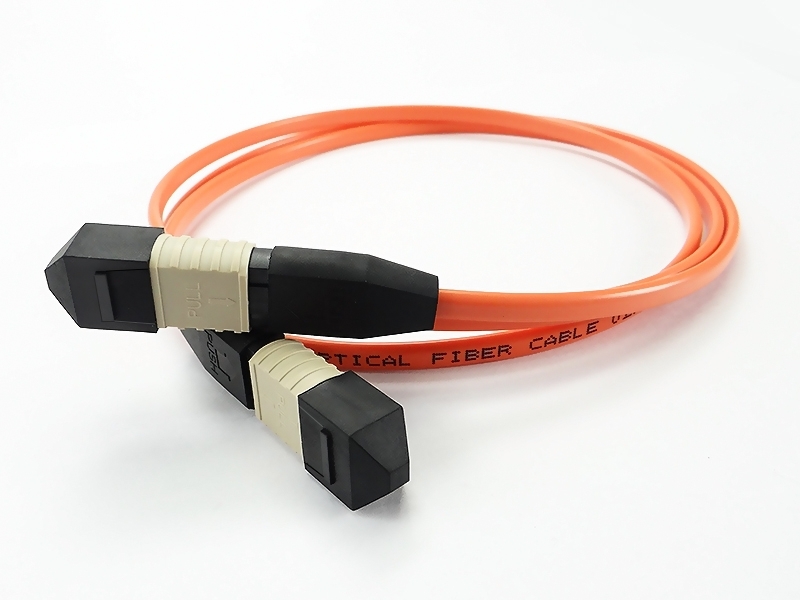

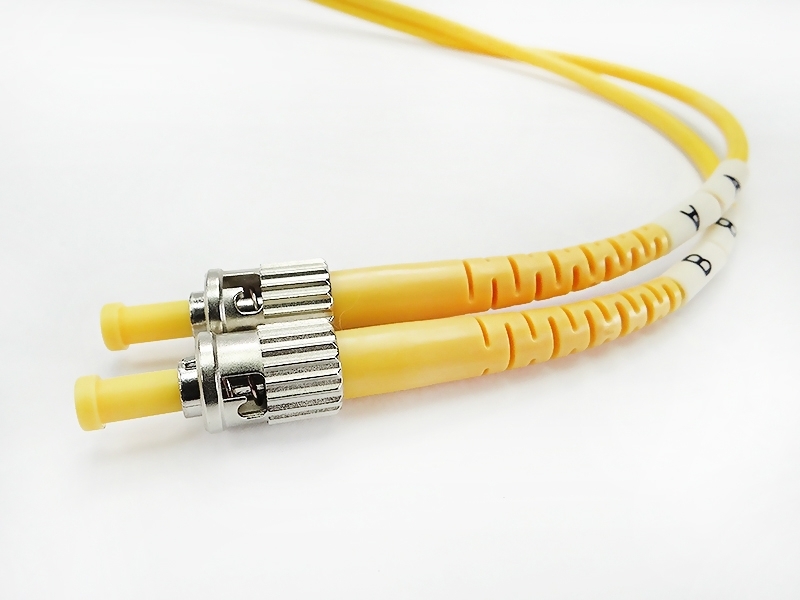

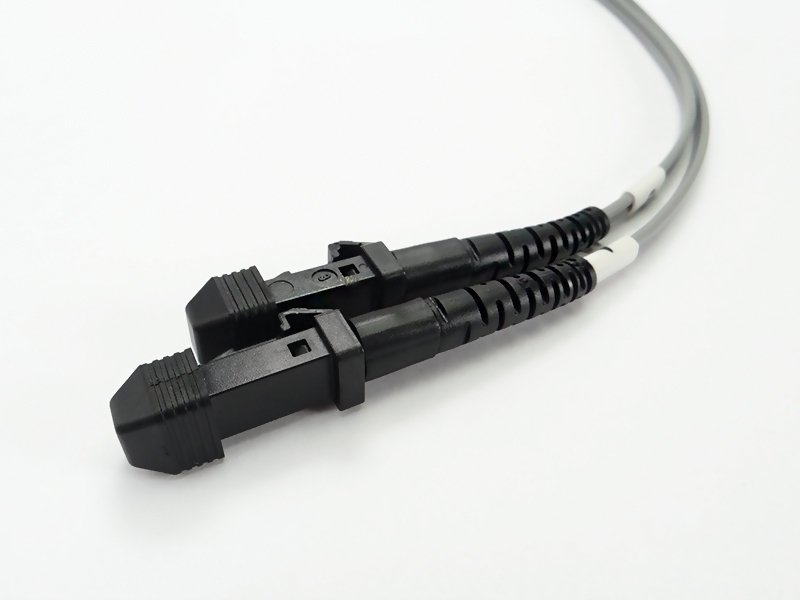

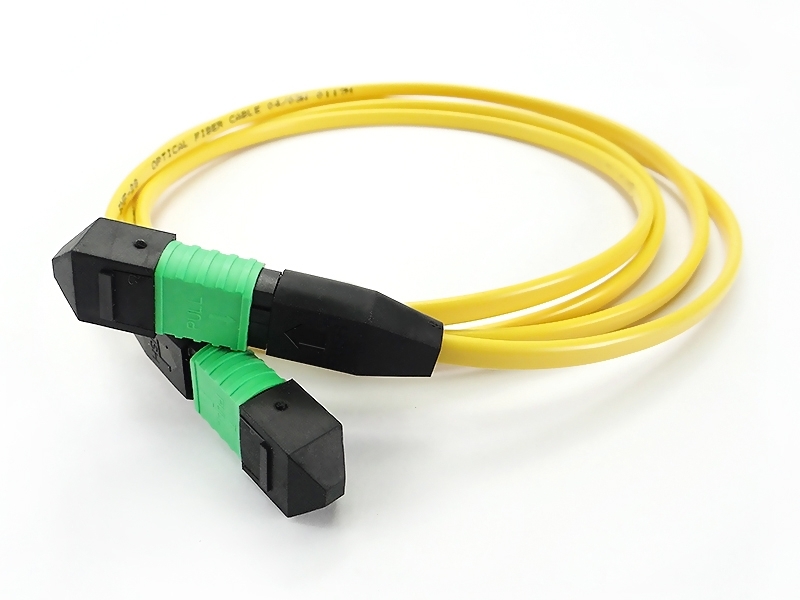

◆ It can be assembled with SC，ST，FC，LC MTRJ and MPO connectors in accordance with equipment interface requirements. |
||||||||
| ◆ Low insertion Loss, excellent return loss, lowest loss at interconnections, high reliability and stability. Easy to operate. | ||||||||
|
◆ Design may include various grinding methods ( PC / UPC / APC ). Customized according to customer demand including cable length, optical fiber type etc. |
||||||||
Specification
| Optical Performance | Single mode | Multi mode |
|---|---|---|
| Insertion Loss | ≦ 0.3 dB | ≦ 0.3 dB |
| Return Loss | ≧ 45 dB ( PC ) | None |
| ≧ 55 dB ( UPC ) | ||
| ≧ 60 dB ( APC ) | ||
| Durability | 500 Matings | |
| Operating Temperature | -20℃ ~ +75 ℃ | |
| Storage Temperature | -40℃ ~ +75 ℃ | |
