| Tubing

Application

    ● For use as bare fiber protection in optical communication apparatus.

Features

    All of sheath materials are RoHS compliance : PVCLSZH ( Low Smoke Zero Halogen )HytrelOFNPNYLON etc.
        Both OFNP and OFNR meet UL flame retardant specification.

    Outer Diameter can be 0.6mm / 0.9mm / 1.4mm / 2.0mm / 2.4mm / 3.0 mm.

        Customized according to customer demand.

Specification

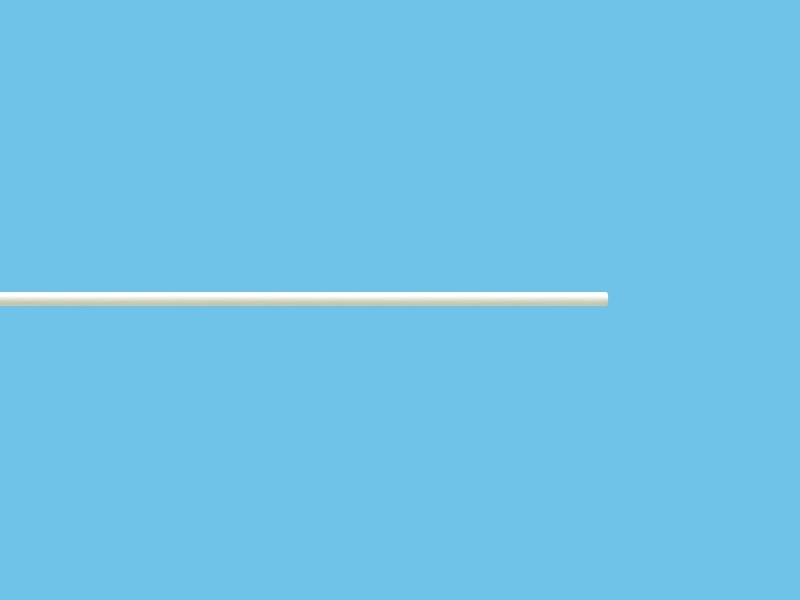

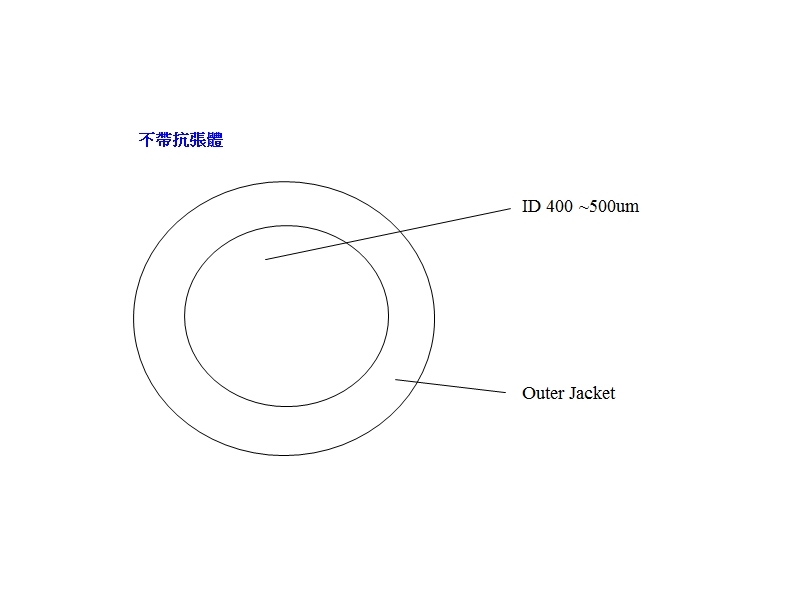

Without Aramid strength member:

 SpecificationOuter Diameter
( mm)
Inner Diameter
(mm)
0.6mm Tubing 0.6 0.3
0.9mm Tubing 0.9 0.5
1.4mm Tubing 1.4 1.1
( The above information is for reference only. Please implement in accordance with the normal data specification.  )

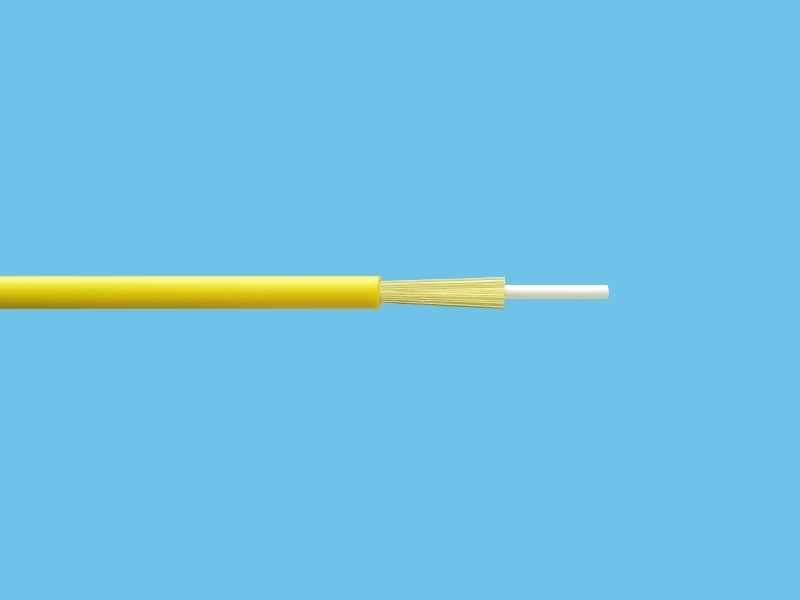

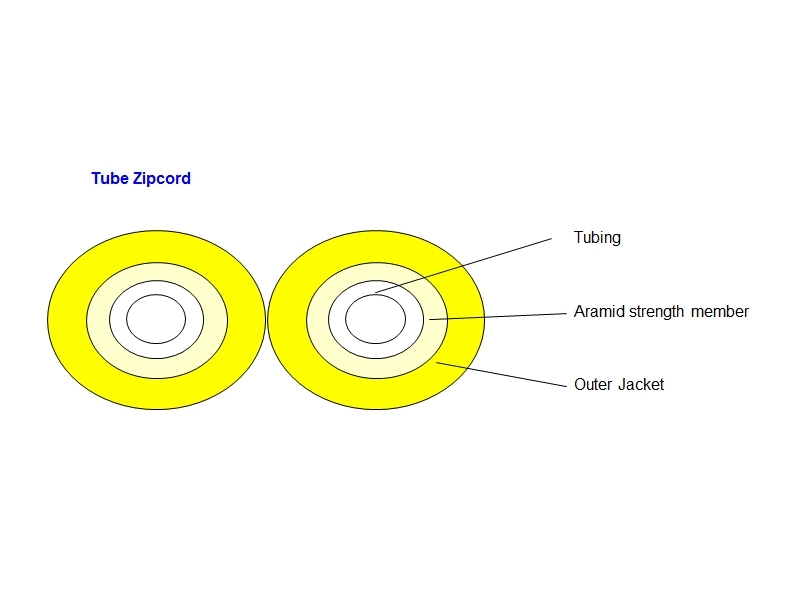

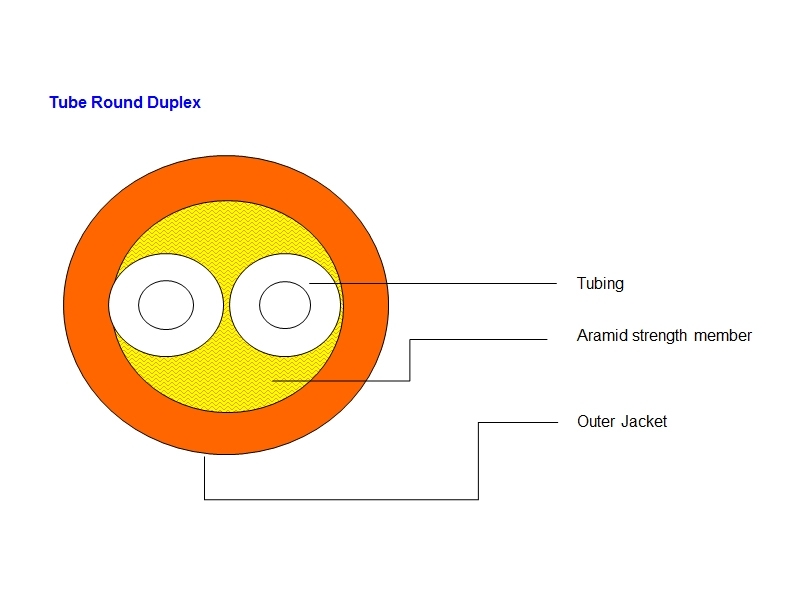

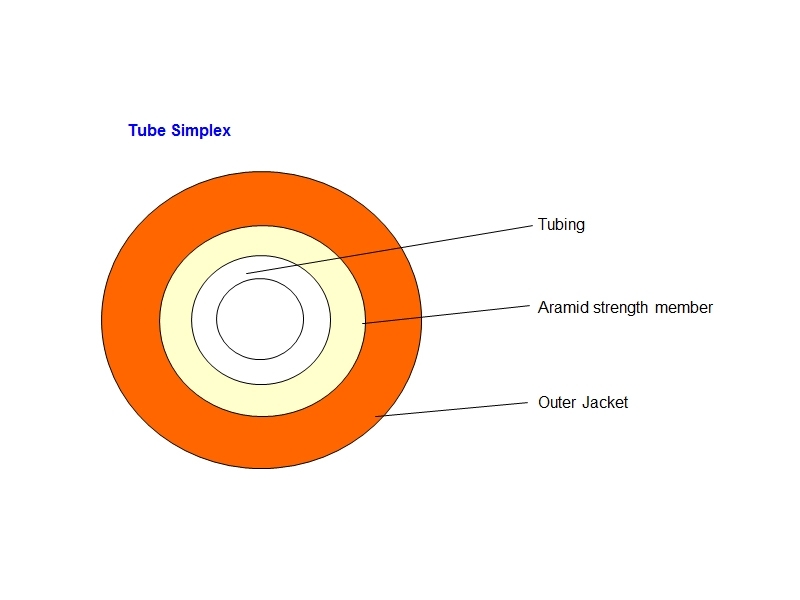

With Aramid strength member:

 SpecificationOuter Diameter
( mm)
0.6mm Tubing 1.6
0.9mm Tubing 1.8
1.4mm Tubing 2.0 ~ 2.3
( The above information is for reference only. Please implement in accordance with the normal data specification.  )
