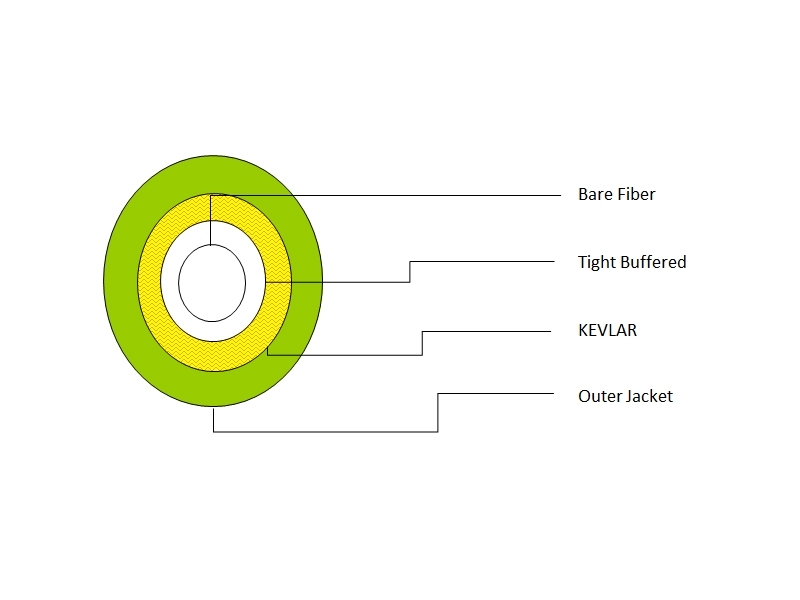

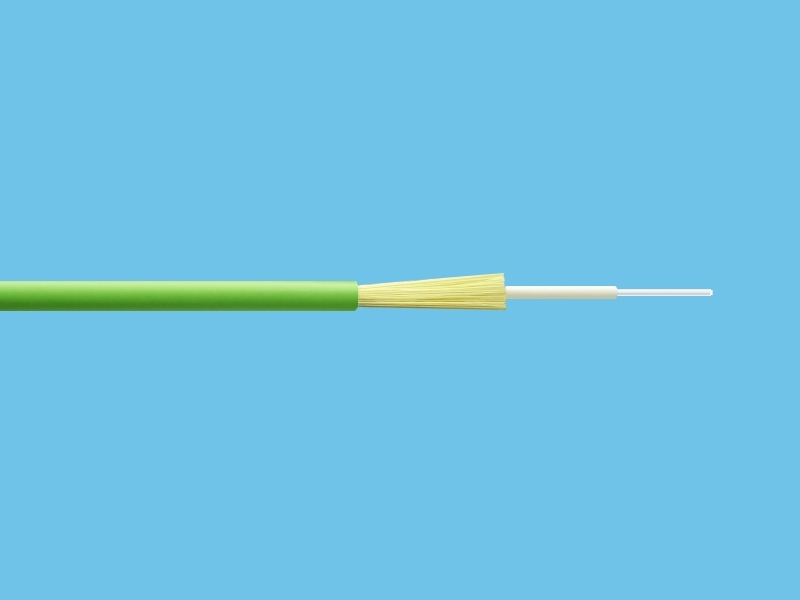

| Simplex cable
Application
| ● It can be directly assembled with connectors as pigtail or patch cord. | ||||||
| ● The link between the communication device and instrument. | ||||||
| ● Multiple tight-buffered fibers can be bundled as distribution cable for indoor wiring. | ||||||
Features
| ● All of sheath materials are RoHS compliance : PVC，LSZH ( Low Smoke Zero Halogen )，Hytrel，OFNP etc. | ||||||||
| Both OFNP and OFNR meet UL flame retardant specification. | ||||||||
| ● Smaller outer diameter and bend radius in a limited space environments to facilitate construction. | ||||||||
| ● Easy to strip the coating material. | ||||||||
| ● Storage, installation, operationg temperature : -20℃ ~ +70 ℃ | ||||||||
Specification
| Fiber Count | Outer Diameter ( mm ) | Weight ( g/m ) | Mini Bending Radius (mm) | Max. Tensile Strength (N) | ||
|---|---|---|---|---|---|---|
| Load | Unload | Short term | Long term | |||
| 1 | 1.6 | ≦5.0 | 45 | 30 | 500 | 300 |
| 1 | 1.8 | ≦6.7 | ||||
| 1 | 2.0 | ≦7.0 | ||||
| 1 | 2.4 | ≦7.5 | ||||
| 1 | 3.0 | ≦8.0 | ||||
