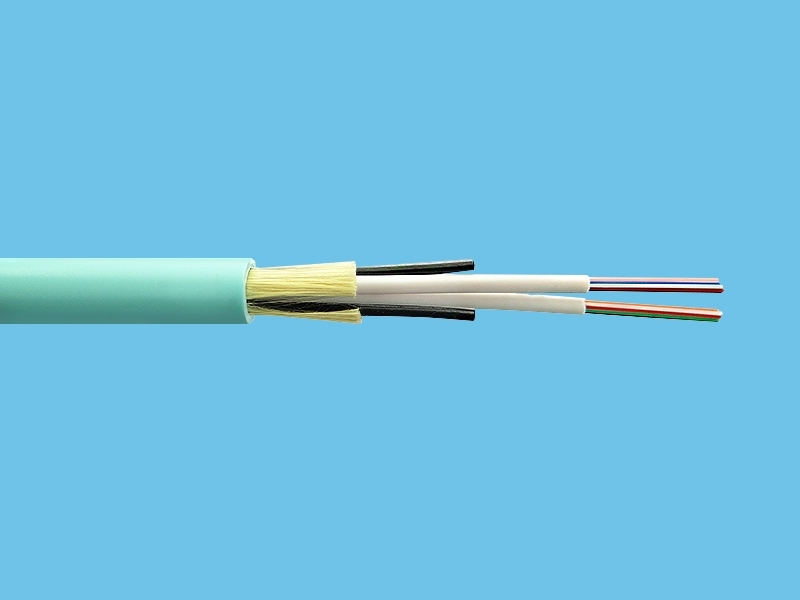

| Micro Subgroup Cable
Application
| ● It can be directly assembled with connectors as pigtail or patch cord. | ||||||||
| ● The link between the communication device and instrument. | ||||||||
|
● As building to building connecting cables. As indoor soft cable along the walls and ceiling and between layers and in ducts. |
||||||||
Features
| ● All of sheath materials are RoHS compliance : PVC，LSZH ( Low Smoke Zero Halogen )，Hytrel，OFNP etc. | ||||||||||
| Both OFNP and OFNR meet UL flame retardant specification. | ||||||||||

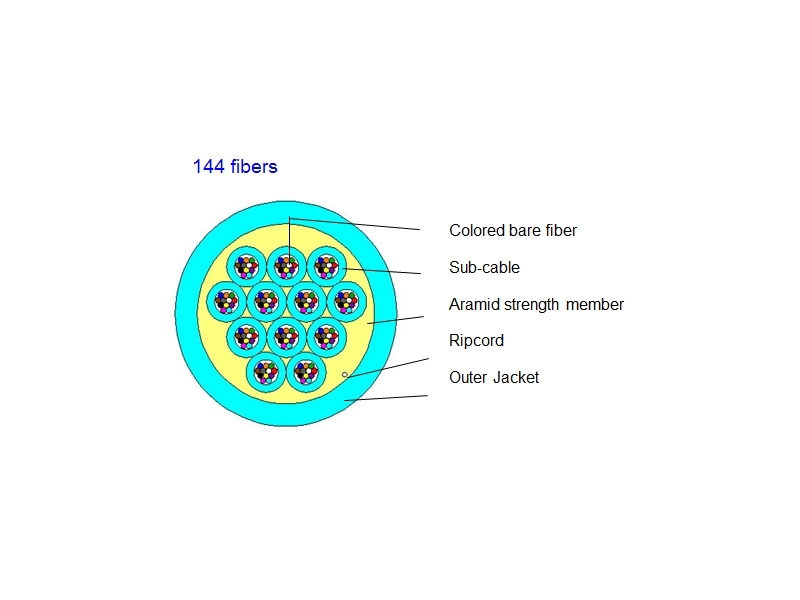

| ● Fiber count can be expanded to 144 cores and it can be customized according to customer demand. | ||||||||||
| ● Easy and quickly to identify for using colored optical fiber. | ||||||||||
|
● Smaller outer diameter and light-weighted. Easy to be deployed. It can effectively overcome the difficulties of the old pipeline construction. |
||||||||||
| ● Storage, installation, operationg temperature : -20℃ ~ +70 ℃ | ||||||||||
Specification
| ( The following is for reference only. Please implement in accordance with the normal data specification. ) |
| Fiber Count | Outer Diameter ( mm ) | Weight ( g/m ) | Mini Bending Radius (mm) | Max. Tensile Strength (N) | ||
|---|---|---|---|---|---|---|
| Load | Unload | Short term | Long term | |||
| 6 - 144 | ≦ 11.5 | ≦ 115 | ≦237 | ≦158 | ≦660 | ≦200 |
