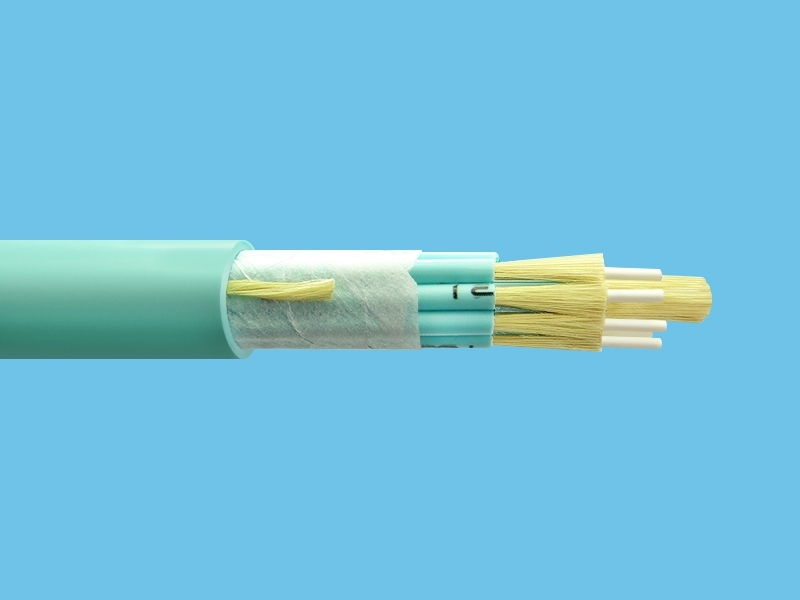

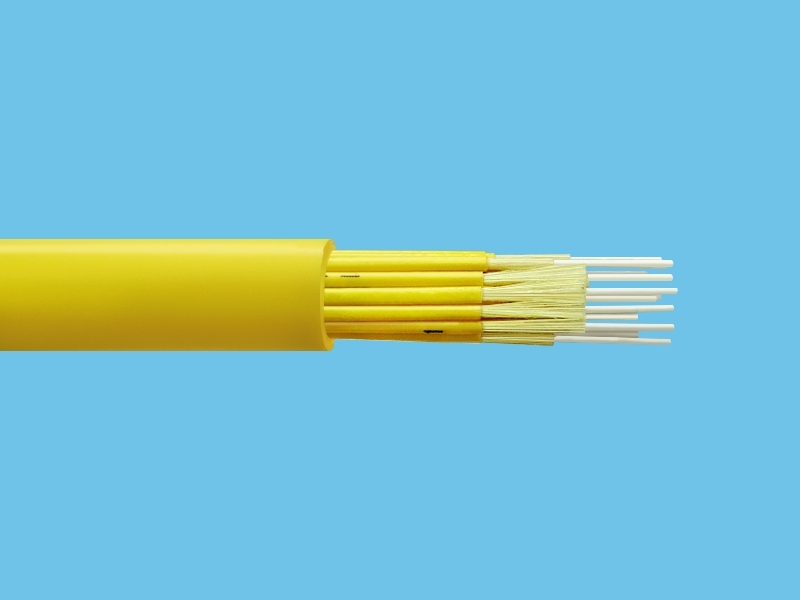

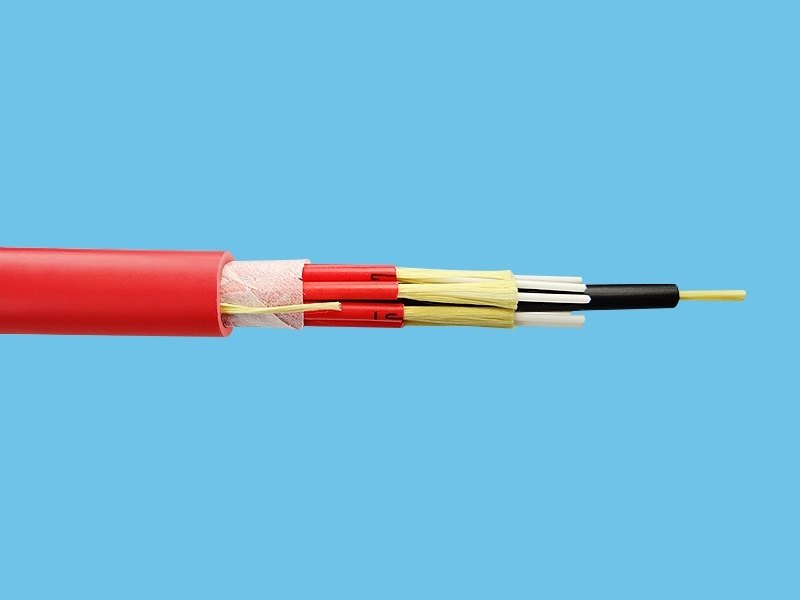

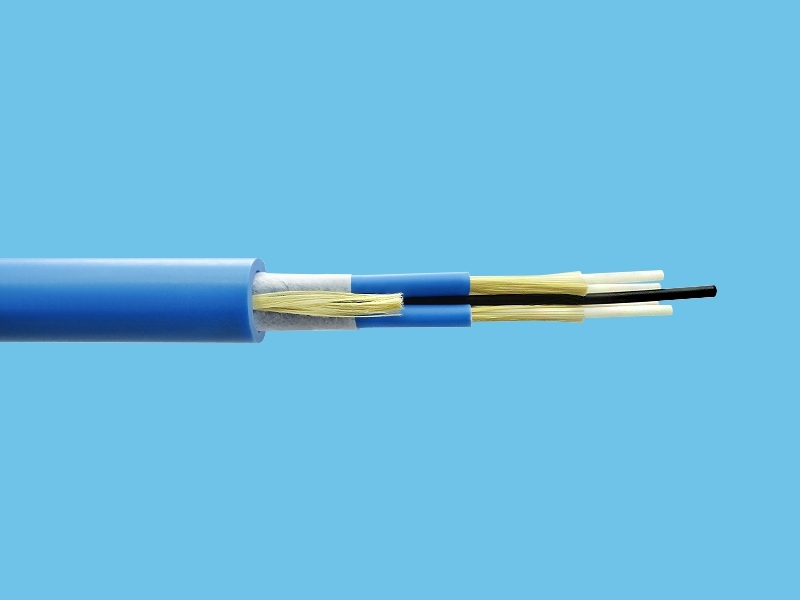

| Breakout Cable
Application
| ● The Breakout cable can be directly assembled with connectors as pigtail or patch cord. | |||||||||
| ● The link between the communication device and instrument. | |||||||||
| ● As building to building connecting cables. As indoor soft cable along the walls and ceiling and between layers and in ducts. | |||||||||
Features
| ● All of sheath materials are RoHS compliance : PVC，LSZH ( Low Smoke Zero Halogen )，Hytrel，OFNP etc. | ||||||||||
| Both OFNP and OFNR meet UL flame retardant specification. | ||||||||||
|

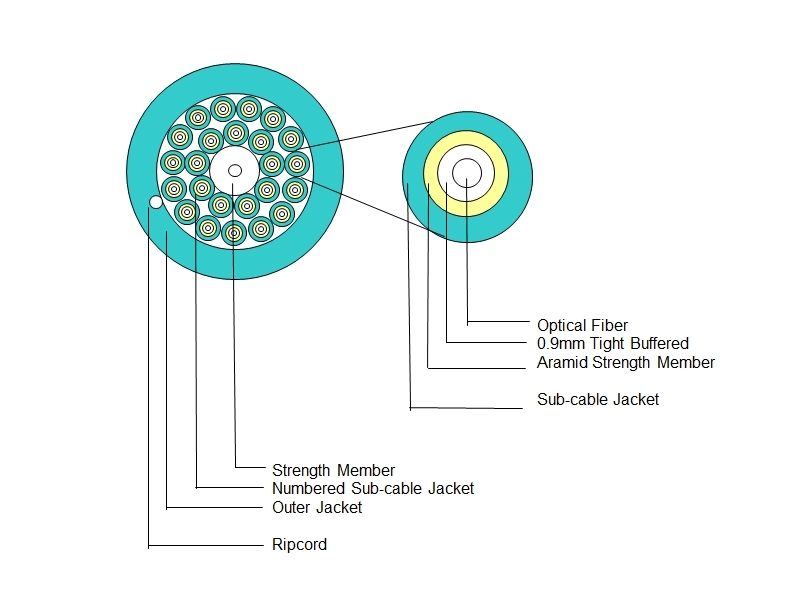

● The subunits are stranded around the cable core. It is non-metallic strength member so that the cable can withstand greater tension. |
||||||||||
| ● Smaller outer diameter and bend radius in a limited space environments to facilitate construction. | ||||||||||
| ● Storage, installation, operationg temperature : -20℃ ~ +70 ℃ | ||||||||||
Specification
| Fiber Count | Outer Diameter ( mm ) | Weight ( g/m ) | Mini Bending Radius (mm) | Max. Tensile Strength (N) | ||
|---|---|---|---|---|---|---|
| Load | Unload | Short term | Long term | |||
| 2 - 36 | ≦ 16.5 | ≦ 203 | ≦ 160 | ≦ 150 | ≦ 9600 | ≦ 2400 |
